Internal Type Device
> Products Information > SPG Memvrane Emulsification > SPG Device > Internal Type DeviceInternal pressure type micro kit
Enables easy generation of monodisperse emulsion.Ultra-small membrane emulsification device using SPG
Overview
Pressure of N2 gas causes the disperse phase to move from the inside of SPG membrane to the outside so that uniform and monodispersed droplet of emulsion and capsulation can be manufactured.
Specification
| Model No. | MN-20 | IMK-20 |
|---|---|---|
| shape |  |
 |
| Difference | Basic function | Basic function + easy & convenient operation |
| SPG Membrane | ø10 * 20mm (Effective length: 10mm) | |
| Available pore size | 0.2㎛ or more | |
| Working pressure | 0 ~ 300kPa | |
| Vol. of Disperse Phase | 2 ~ 10ml | |
| Vol. of Continuous phase | 8ml to 200ml (Depending on the vessel capacity) | |
| Features |
- The process of manufacturing emulsion can be observed real time, providing great convenience for getting basic data. - Pressure control and operation is simple and allows manufacturing of droplet with excellent reliability. - Materials are stainless steel or Teflon with great chemical resistance, making the device suitable for wide range of applications such as pharmaceuticals or cosmetics. |
|
| mimetic diagram & Emulsion Picture |
 |
|
| Model No. | IMK-40 |
|---|---|
| SPG Membrane | ø10 * 20mm (Effective length: 10mm) |
| Available pore size | 0.2㎛ or more |
| Working pressure | 0 ~ 300kPa |
| Vol. of Disperse Phase | 5 ~ 30ml |
| Vol. of Continuous phase | 150 ~ 250ml (selectable) |
| Features |
- Pressure control and operation is simple and allows manufacturing of droplet with excellent reliability. - Materials are stainless steel or Teflon with great chemical resistance, making the device suitable for wide range of applications such as pharmaceuticals or cosmetics. - This device are hardly affected by gravity when manufacturing large particles with massive diameter from 50 to 100㎛. due to DP tank & CP tank are place to horizontal - Both DP and CP tanks allows heated processing as they has double-jacket structure. - Either high or low pressure operations are available for elaborate control of monodispersing of emulsion. |
| Shape & mimetic diagram |  |

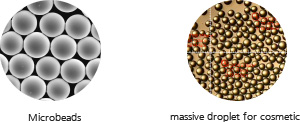

| Emulsion picture |  |
