CarboSPA is...

The device converts generic warm water of public sauna, spa or public bathing facilities into high concentration carbonated water for reliable supply of carbonated water with great concentration of bigger ppm than 1,000 even at +38℃ temperatures.

Features of CarboSPA

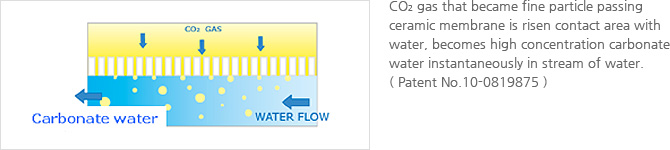

High efficiency by employing membrane-based dissolution method

World’s first "Recirculation system for undissolved gas"

Gas that has not been fully dissolved in the water is sent back to the gas dissolver again to prevent leak of the carbonated gas to the bathing area so that customers can enjoy safe carbureted spa experience. Such recirculation leads to the drastic reduction of gas amount and cost saving.

Convenient operation and maintenance

- Operation automatically starts when warm water starts to flow to the inside of the device. The touchscreen interface also provides great convenience in maintenance.

- Diverse types of advanced sensors are integrated so that operation automatically stops and alarms are sent in case of any error with water flow or gas pressure.

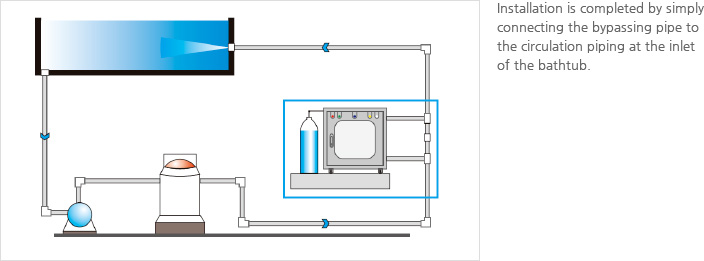

Simple installation

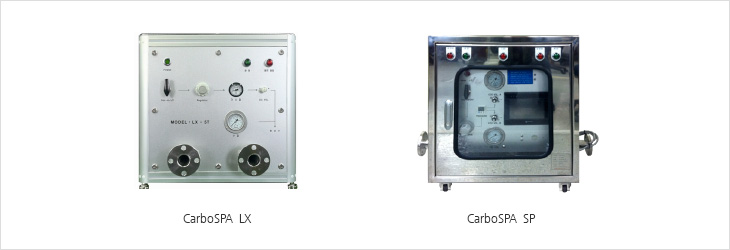

Product Line-up

Most appropriate specifications are custom-applied to suit any bathtub with different capacity.

Specification

Category	3T	5T	7T	10T	15T
Suitable bathtub	Below 4.3ton	6.4 ton	8.6 ton	10.8 ton	15.1 ton
Manufacturing capacity	80 ℓ/min	120 ℓ/min	160 ℓ/min	200 ℓ/min	280 ℓ/min
Required piping	32A	32A	40A	40A	40A
Features	LX TYPE	- Automatic operation upon inflow of warm water - Regulator for incoming gas is integrated - Timer function - Water pressure gauge is integrated - Automatic alarm upon any error with pump - 200V/60Hz
	SP TYPE	- Basic features of LX type - Touchscreen interface - Recirculates undissolved gas for maximum efficiency - Alarm for replacing gas - Intermittent operation and timer functions

Images from sites with the device

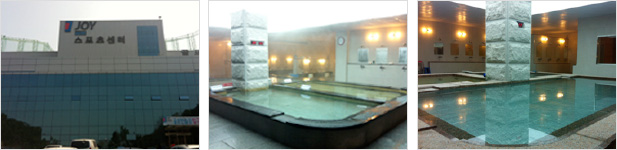

< Sports center >

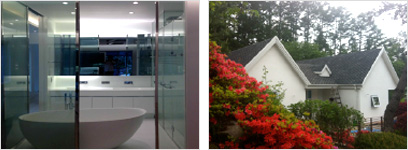

< Vacation home >

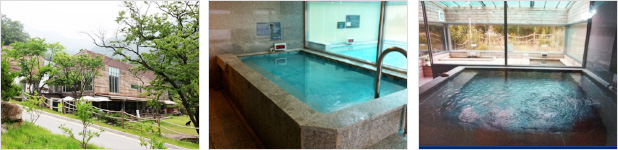

< Healing Center >

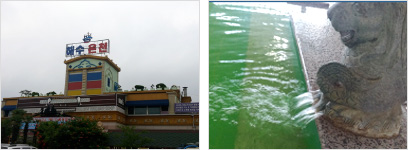

< Hot Spring >

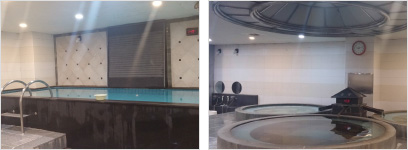

< Public Bath >
